Consumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG Weight

Taizhou Tuowen Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Consumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG Weight from wholesalers

    Buy cheap Consumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG Weight from wholesalers
    • Buy cheap Consumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG Weight from wholesalers
    • Buy cheap Consumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG Weight from wholesalers
    • Buy cheap Consumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG Weight from wholesalers
    • Buy cheap Consumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG Weight from wholesalers

    Consumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG Weight

    Ask Lasest Price
    Brand Name : Longer
    Price : $22,000.00 - $30,000.00/sets
    • Product Details
    • Company Profile

    Consumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG Weight

    Technical Prarameter

    BrandLongerModelLGD-4-15TypeBlow molding machine
    Applicable materialsPP,PETProduct aliasesFull-automatic oil
    bottle blowing machine
    Product useUsed for blowing pET pp material
    various plastic bottles
    Production capacity3500pcs/hrOverall dimensions4050*2200*1800(mm)Diameter of screw38(mm)
    Screw l/d ratiostandardProduct thickness0.1-3(mm)Power of electric motor0.55(kw)

    Product Description

    ITEMUNITLGD-4-15
    Number of cavitycavity4
    Theoretical Outputpcs/hr3600-4000
    Max.container volumeL1.5
    Max.neck diametermm45
    Max.container diametermm100
    Max.container heightmm330
    Mould Thicknessmm240
    Mould Strokemm130
    Stretching Strokemm114
    Heat Lamp Amountpcs28
    Max.heating powerkw22.4
    Power of Main Blowerkw23
    Actual power consumptionkw6-8kw
    Working PressureMpa0.8
    Low pressure consumingLtr/min1600
    Blowing pressureMpa<=3.5
    High pressure consumingLtr/min1200
    Measurement of Main Blowermm2050*1600*1800
    Measurement of elevatormm1800*900*2240
    Weight of Main Blowerkg2200

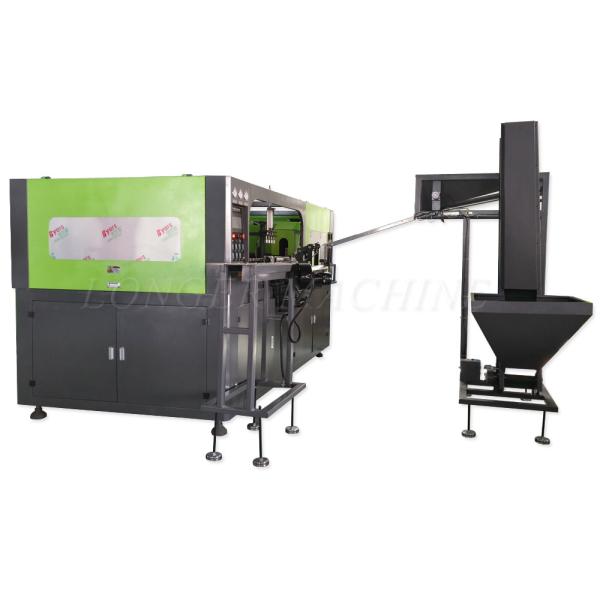

    Product Showing

    Consumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG WeightConsumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG WeightConsumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG WeightConsumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG Weight

    Packaging & Shipping

    Consumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG WeightConsumption Pet Blow Moulding Machine with 380V/50HZ Voltage and 3200 KG Weight
