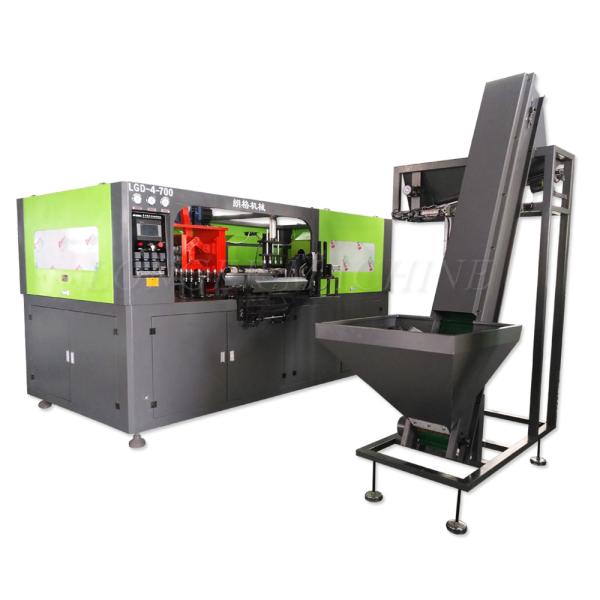

Imported Computer Control Fast Full-automatic Blow Molding Machine for High Production

Technical Prarameter

BrandLongerModelLGD-4-15TypeBlow molding machine
Applicable materialsPP,PETProduct aliasesFull-automatic oil
bottle blowing machine
Product useUsed for blowing pET pp material
various plastic bottles
Production capacity3500pcs/hrOverall dimensions4050*2200*1800(mm)Diameter of screw38(mm)
Screw l/d ratiostandardProduct thickness0.1-3(mm)Power of electric motor0.55(kw)

Product Description

ITEMUNITLGD-4-15
Number of cavitycavity4
Theoretical Outputpcs/hr3600-4000
Max.container volumeL1.5
Max.neck diametermm45
Max.container diametermm100
Max.container heightmm330
Mould Thicknessmm240
Mould Strokemm130
Stretching Strokemm114
Heat Lamp Amountpcs28
Max.heating powerkw22.4
Power of Main Blowerkw23
Actual power consumptionkw6-8kw
Working PressureMpa0.8
Low pressure consumingLtr/min1600
Blowing pressureMpa<=3.5
High pressure consumingLtr/min1200
Measurement of Main Blowermm2050*1600*1800
Measurement of elevatormm1800*900*2240
Weight of Main Blowerkg2200

Product Showing

Imported Computer Control Fast Full-automatic Blow Molding Machine for High ProductionImported Computer Control Fast Full-automatic Blow Molding Machine for High ProductionImported Computer Control Fast Full-automatic Blow Molding Machine for High ProductionImported Computer Control Fast Full-automatic Blow Molding Machine for High Production
